Equivalent & Substitute Parts for Honeywell 14CE3-3K

Part Overview

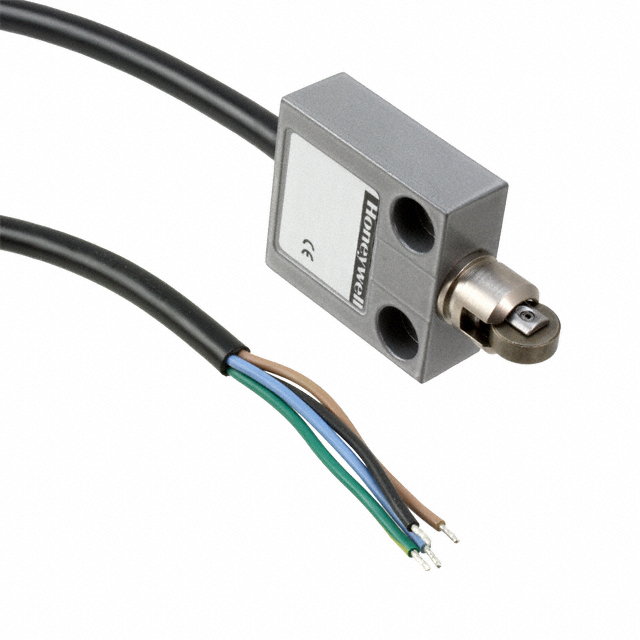

The Honeywell 14CE3-3K is a snap action switch with SPDT (Single Pole Double Throw) circuit configuration, rated for 5A at 250V AC. This component features a roller plunger actuator, chassis mount design, and IP66 ingress protection with a 3-meter cable lead termination. The part is classified as obsolete, necessitating identification of active equivalent alternatives that maintain functional compatibility for new designs and replacement applications.

Substiute Parts

14CE3-3K

Honeywell Sensing and Control EMEAIn Stock: 2025314CE3-3K Datasheet

Current PartRFQ

14CE3-3

Honeywell Sensing and Control EMEAIn Stock: 117114CE3-3 Datasheet

DirectRFQ

D4C-1633

Omron Automation and SafetyIn Stock: 852D4C-1633 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 14CE3-3K is determined by the following core parameters: SPDT circuit configuration, minimum 5A AC current rating at 250V AC, roller plunger actuator type, chassis mount design, cable lead termination, and 3-meter cable length. Parts meeting these criteria are classified as direct or similar substitutes based on additional performance characteristics.

Direct Substitute (14CE3-3): Maintains identical electrical ratings, actuator type, mounting configuration, and cable specifications. Differs in ingress protection (IP65 vs. IP66) and operating force (1200gf vs. 2300gf). Active product status enables continued procurement.

Similar Substitute (D4C-1633): Meets core electrical and mechanical requirements with SPDT configuration, 5A AC at 250V, roller plunger actuator, and chassis mount. Provides enhanced ingress protection (IP67), extended temperature range (-10°C to 70°C), and DC rating capability (4A at 30V). Operating position differs (1.350" vs. 1.122"), requiring mechanical verification in space-constrained applications.

Parameter Comparison

Engineering Selection Recommendations

14CE3-3 (Direct Substitute): Recommended as the primary replacement for 14CE3-3K applications. Active product status ensures availability and supply chain continuity. ROHS3 compliance meets current regulatory requirements. IP65 ingress protection is suitable for most industrial environments where IP66 is not mandated. Lower operating force (1200gf vs. 2300gf) may reduce actuator wear in high-cycle applications. Identical mechanical dimensions and electrical ratings enable direct substitution without design modification.

D4C-1633 (Similar Substitute): Suitable for applications requiring enhanced environmental protection (IP67 waterproof rating) or extended operating temperature range (-10°C to 70°C). DC voltage capability (4A at 30V) provides flexibility for dual-voltage applications. ROHS3 compliance and active product status support long-term procurement. Mechanical dimension differences (operating position 1.350" vs. 1.122") require verification of mounting clearance and actuator travel space before implementation.

Frequently Asked Questions (FAQ)

Q: Can 14CE3-3 directly replace 14CE3-3K without modification? A: Yes. The 14CE3-3 maintains identical electrical ratings (5A at 250V AC), actuator type (roller plunger), mounting configuration (chassis mount), cable length (3m), and mechanical life (10,000,000 cycles). The primary difference is ingress protection (IP65 vs. IP66). Direct substitution is valid for applications where IP65 environmental sealing is acceptable.

Q: What are the mechanical differences between 14CE3-3K and D4C-1633? A: The D4C-1633 has a larger operating position (1.350" vs. 1.122"), requiring 0.228 inches additional actuator travel space. Pretravel and overtravel specifications differ slightly. These dimensional variations necessitate mechanical clearance verification in space-constrained enclosures before substitution.

Q: Is D4C-1633 suitable for applications requiring IP66 protection? A: No. The D4C-1633 provides IP67 (waterproof) protection, which exceeds IP66 requirements. However, if the application specifically mandates IP66 (dust tight, water resistant but not waterproof), the 14CE3-3 is the appropriate choice.

Q: Can D4C-1633 be used in DC applications? A: Yes. The D4C-1633 is rated for 4A at 30V DC, providing DC capability not present in the Honeywell 14CE3 series. This makes it suitable for dual-voltage (AC/DC) applications.

Q: What is the impact of different operating forces on component selection? A: Operating force (2300gf for 14CE3-3K, 1200gf for 14CE3-3, 1800gf for D4C-1633) determines actuator effort required for switch activation. Lower operating force reduces mechanical stress on actuators and may extend system life in high-cycle applications. Higher operating force provides greater resistance to unintended activation from vibration or shock.

Q: Are all substitute parts RoHS compliant? A: Yes. The 14CE3-3 and D4C-1633 are both ROHS3 compliant, meeting current environmental and regulatory standards. The original 14CE3-3K is RoHS compliant (earlier standard).
