Equivalent & Substitute Parts for TE Connectivity 1-1634688-0

Part Overview

The TE Connectivity 1-1634688-0 is a rectangular connector header, vertical mount, 10-position, 2.54mm pitch, designed for through-hole solder termination. This component belongs to the AMP-Latch series and features shrouded 4-wall construction with push-pull fastening. The part is currently classified as obsolete, necessitating identification of active equivalent and substitute components that maintain functional compatibility within the same connector category and electrical specifications.

Key Parameters

Parameter	Value
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	10
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting Type	Through Hole
Termination	Solder
Shrouding	Shrouded - 4 Wall
Fastening Type	Push-Pull
Contact Shape	Square
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant
Moisture Sensitivity Level	1 (Unlimited)

Substitute Part Grouping Explanation

Substitution of the TE Connectivity 1-1634688-0 is determined by strict alignment of the following critical parameters:

Primary Substitution Criteria:

Connector type: Header
Contact type: Male Pin
Pitch - mating: 0.100" (2.54mm)
Number of positions: 10
Number of rows: 2
Row spacing - mating: 0.100" (2.54mm)
Mounting type: Through Hole
Termination: Solder
Shrouding: Shrouded - 4 Wall
Fastening type: Push-Pull
Contact shape: Square
Material flammability rating: UL94 V-0
RoHS status: ROHS3 Compliant
Moisture sensitivity level: 1 (Unlimited)

Direct Equivalent: TE Connectivity 5103308-1 maintains all primary substitution criteria and is classified as active product status.

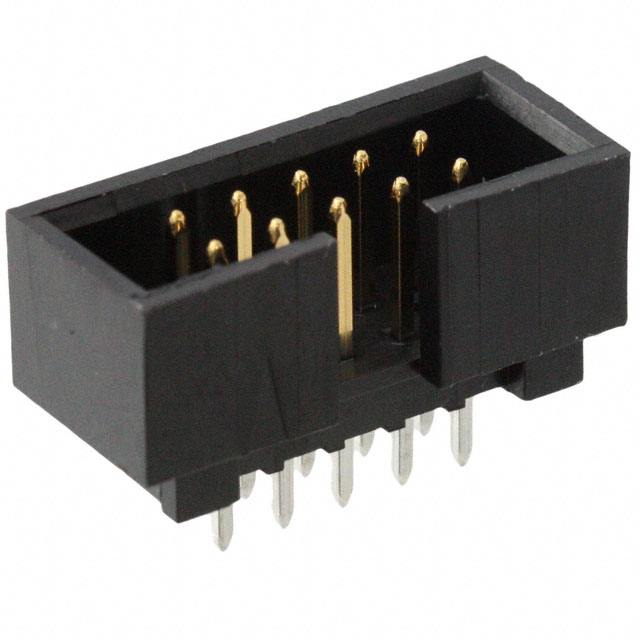

Cross-Manufacturer Substitutes: Molex C-Grid series (0702461001, 0702461003, 0702461004) and C-Grid 87834 series (0878341011, 0878341019, 0878341041) satisfy all primary substitution criteria with active product status. The 3M 303 series (30310-6002HB) and Amphenol ICC Quickie™ series (52601-G10-4) also meet primary criteria.

Orientation Variant: HARTING SEK series (09195106323740) is a right-angle mount variant and does not qualify as a direct substitute due to mounting orientation difference.

Parameter Comparison

Parameter	1-1634688-0 (Main)	5103308-1 (TE)	0702461001 (Molex)	0702461004 (Molex)	0878341041 (Molex)	30310-6002HB (3M)	52601-G10-4 (Amphenol)
Connector Type	Header	Header	Header	Header	Header	Header	Header
Contact Type	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin
Pitch - Mating	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Number of Positions	10	10	10	10	10	10	10
Number of Rows	2	2	2	2	2	2	2
Row Spacing - Mating	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Termination	Solder	Solder	Solder	Solder	Solder	Solder	Solder
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall
Fastening Type	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull
Contact Shape	Square	Square	Square	Square	Square	Square	Square
Contact Length - Mating	0.228" (5.80mm)	0.240" (6.10mm)	0.240" (6.10mm)	0.240" (6.10mm)	0.240" (6.10mm)	0.236" (6.00mm)	0.230" (5.84mm)
Contact Length - Post	0.126" (3.20mm)	0.120" (3.05mm)	0.135" (3.43mm)	0.135" (3.43mm)	0.135" (3.43mm)	0.110" (2.79mm)	0.120" (3.05mm)
Insulation Height	0.343" (8.71mm)	0.388" (9.86mm)	0.365" (9.27mm)	0.365" (9.27mm)	0.365" (9.27mm)	0.366" (9.30mm)	0.365" (9.27mm)
Material Flammability Rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
RoHS Status	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	RoHS non-compliant
Moisture Sensitivity Level	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)
Product Status	Obsolete	Active	Active	Active	Active	Active	Active

Engineering Selection Recommendations

Primary Recommendation: TE Connectivity 5103308-1

The TE Connectivity 5103308-1 is the direct equivalent substitute for the obsolete 1-1634688-0. Both components are manufactured by TE Connectivity within the AMP-Latch series. The 5103308-1 maintains identical mechanical and electrical interface specifications, is ROHS3 compliant, and carries active product status. This part is available in tray packaging with 1379 units in stock.

Secondary Recommendations: Molex C-Grid Series

The Molex C-Grid series (0702461001, 0702461003, 0702461004) and C-Grid 87834 series (0878341011, 0878341019, 0878341041) provide cross-manufacturer alternatives. All variants maintain the required 10-position, 2-row, 2.54mm pitch configuration with through-hole solder termination and push-pull fastening. These parts are ROHS3 compliant and carry active product status. Inventory availability ranges from 827 to 26,759 units depending on variant selection.

Tertiary Recommendations: 3M and Amphenol ICC

The 3M 303 series (30310-6002HB) and Amphenol ICC Quickie™ series (52601-G10-4) satisfy all primary substitution criteria. The 3M component is ROHS3 compliant with active status and 18,800 units in stock. The Amphenol ICC component is RoHS non-compliant and carries REACH Affected status, limiting applicability to non-regulated applications.

Not Recommended: HARTING 09195106323740

The HARTING SEK series component (09195106323740) features right-angle mounting orientation, which differs from the vertical mount requirement of the main part. This orientation variant is not suitable as a direct substitute despite meeting other electrical and mechanical criteria.

Frequently Asked Questions (FAQ)

Q: Can the TE Connectivity 5103308-1 be used as a direct replacement for the 1-1634688-0?

A: Yes. The 5103308-1 maintains identical connector type, contact configuration, pitch, row spacing, mounting method, termination type, shrouding, and fastening mechanism. Both components are ROHS3 compliant with MSL 1 rating. The primary difference is product status: the original part is obsolete while the 5103308-1 is active.

Q: What are the key differences between the TE Connectivity 5103308-1 and Molex C-Grid alternatives?

A: All parts maintain the same 10-position, 2-row, 2.54mm pitch header configuration. Differences exist in contact material (brass vs. phosphor bronze vs. copper alloy), insulation material composition, contact finish specifications, and contact length dimensions. These variations do not affect mechanical or electrical interface compatibility for standard applications.

Q: Are there packaging considerations when selecting a substitute?

A: Yes. The original 1-1634688-0 is supplied in bulk packaging. Substitute parts are available in multiple packaging formats: tray, bag, and bulk. Selection should align with assembly process requirements and inventory management practices. Tray packaging is standard for high-volume production environments.

Q: Why is the HARTING 09195106323740 listed but not recommended?

A: The HARTING component is a right-angle mount variant, whereas the original part and all recommended substitutes are vertical mount. Mounting orientation is a critical mechanical parameter that determines PCB layout compatibility. Right-angle variants are not interchangeable with vertical mount headers.

Q: What compliance certifications apply to all recommended substitutes?

A: All recommended substitutes (TE Connectivity 5103308-1, Molex C-Grid series, and 3M 303 series) are ROHS3 compliant with UL94 V-0 flammability rating and MSL 1 moisture sensitivity level. The Amphenol ICC component is RoHS non-compliant and REACH Affected, restricting use in regulated markets.

Q: Are there current rating differences between the main part and substitutes?

A: The original 1-1634688-0 specifies 3A current rating. The TE Connectivity 5103308-1 specifies 1A per contact. Molex, 3M, and Amphenol ICC variants do not provide current rating specifications in available documentation. Application-specific current requirements must be evaluated against these specifications.

Q: Can substitutes be intermixed in the same assembly?

A: All recommended substitutes maintain identical mating interface specifications (pitch, row spacing, contact configuration). However, mixing different manufacturers or series within a single assembly is not recommended due to potential variations in contact finish, material composition, and mechanical tolerances that could affect connector reliability over extended use cycles.
