TE Connectivity 1-104257-6 Equivalent & Substitute Parts

Part Overview

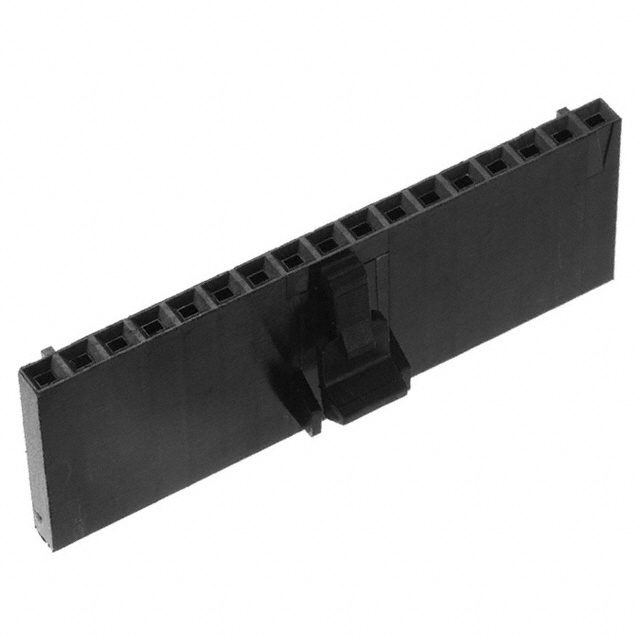

The TE Connectivity 1-104257-6 is a 17-position rectangular connector receptacle housing designed for 0.100" (2.54mm) pitch applications. This component functions as a female socket receptacle within the AMPMODU MTE series and is classified as a free-hanging, in-line connector suitable for crimp termination with latch lock fastening. The part maintains active product status with full RoHS compliance and unlimited moisture sensitivity rating. Identification of equivalent and substitute parts is necessary to ensure design flexibility, supply chain continuity, and component availability across manufacturing and assembly operations.

Substiute Parts

1-104257-6

TE Connectivity AMP ConnectorsIn Stock: 8691-104257-6 Datasheet

Current PartRFQ

1-104257-6

TE Connectivity AMP ConnectorsIn Stock: 8691-104257-6 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the TE Connectivity 1-104257-6 is determined by strict parametric matching across all critical electrical and mechanical specifications. The following parameters establish the substitution criteria:

Critical Matching Parameters:

• Connector Type: Receptacle
• Contact Type: Female Socket
• Number of Positions: 17
• Pitch: 0.100" (2.54mm)
• Number of Rows: 1
• Mounting Type: Free Hanging (In-Line)
• Contact Termination: Crimp
• Fastening Type: Latch Lock
• Insulation Material: Thermoplastic
• Operating Temperature Range: -65°C to 105°C
• RoHS Compliance: Required
• MSL Rating: 1 (Unlimited)

Only components matching all specified parameters across connector classification, position count, pitch geometry, termination method, fastening mechanism, material composition, and environmental ratings qualify as direct substitutes. Deviations in any single parameter eliminate substitution eligibility.

Parameter Comparison

Engineering Selection Recommendations

The TE Connectivity 1-104257-6 maintains active product status with full regulatory compliance across RoHS and REACH frameworks. The component carries MSL Level 1 rating, indicating unlimited shelf life without moisture sensitivity constraints. Selection of equivalent parts should prioritize components with identical active product status and matching compliance certifications to ensure long-term supply chain viability and regulatory alignment.

When evaluating substitute rectangular connectors in the 17-position, 2.54mm pitch category, confirmation of RoHS compliance and REACH unaffected status is mandatory for applications subject to environmental and hazardous substance regulations. The thermoplastic insulation material and -65°C to 105°C operating temperature range define the thermal and material performance envelope; deviations from these specifications indicate incompatibility with the original design requirements.

Frequently Asked Questions (FAQ)

Q: What defines a direct substitute for the 1-104257-6?

A: A direct substitute must match all parameters: 17-position receptacle housing, female socket contact type, 0.100" (2.54mm) pitch, single-row configuration, free-hanging in-line mounting, crimp termination, latch lock fastening, black thermoplastic insulation, -65°C to 105°C operating range, RoHS compliance, and MSL Level 1 rating.

Q: Can a connector with a different pitch be substituted?

A: No. Pitch is a critical geometric parameter. The 0.100" (2.54mm) pitch specification is non-negotiable for mechanical and electrical compatibility. Connectors with alternative pitch values are not interchangeable.

Q: Are there position count variations available?

A: The 17-position specification is fixed for this part number. Connectors with different position counts (such as 14, 20, or 34 positions) represent different product variants and are not substitutes.

Q: What is the significance of the latch lock fastening type?

A: Latch lock fastening provides mechanical retention between mating connector halves. Substitutes must incorporate identical latch lock mechanisms to ensure proper mating force, retention, and disconnection characteristics.

Q: Does the black color affect substitution eligibility?

A: Color is a specified parameter. Substitutes must be black to match the original design. Alternative colors indicate different part variants.

Q: Why is RoHS compliance mandatory for substitution?

A: RoHS compliance is a regulatory requirement for many applications and markets. Substitutes must maintain identical RoHS compliant status to ensure regulatory alignment and legal compliance in target markets.

Q: What does MSL Level 1 mean for component handling?

A: MSL Level 1 indicates unlimited moisture sensitivity, meaning the component has no moisture absorption constraints and requires no special storage or handling protocols. Substitutes must maintain this MSL Level 1 rating.

Q: Can contacts be purchased separately with this housing?

A: The part specification notes that contacts are not included. Contact procurement is a separate process requiring compatible crimp-style female socket contacts designed for 0.100" (2.54mm) pitch applications.

Q: Is the AMPMODU MTE series designation important for substitution?

A: Yes. The AMPMODU MTE series designation indicates the connector family and design generation. Substitutes must belong to the same series to ensure mechanical and electrical compatibility with mating components and PCB footprints.

Q: What is the difference between the base product number and the full part number?

A: The base product number (104257) identifies the core connector design. The full part number (1-104257-6) includes manufacturer prefix and variant suffix. Both must match for direct substitution.
