TE Connectivity AMP 1060875-2 MCX Connector Plug Equivalent & Substitute Parts

Part Overview

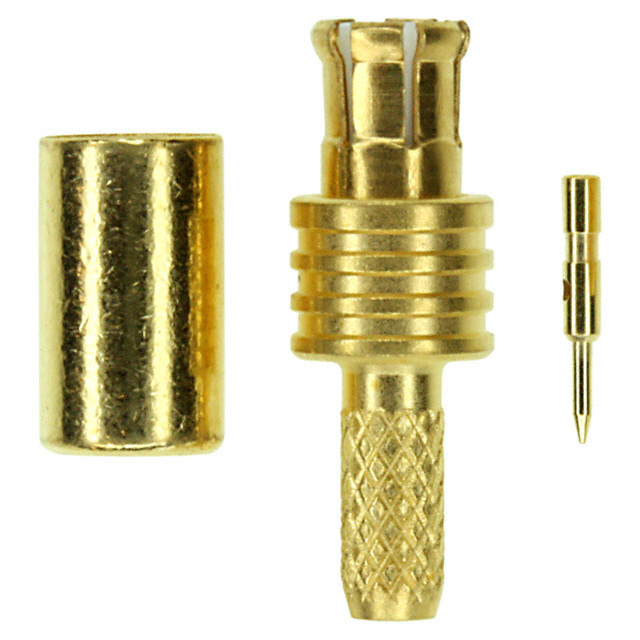

The TE Connectivity AMP 1060875-2 is an MCX connector plug designed for 50-ohm coaxial RF applications. This component is a male pin connector with crimp termination for both center contact and shield, configured for free-hanging (in-line) mounting. The part is classified as obsolete, necessitating identification of equivalent substitute components that maintain functional and electrical compatibility for ongoing system support and new designs.

Substiute Parts

1060875-2

TE Connectivity AMP ConnectorsIn Stock: 6931060875-2 Datasheet

Current PartRFQ

0733660300

MolexIn Stock: 9640733660300 Datasheet

SimilarRFQ

11_MCX-50-2-15/111_NE

Huber+Suhner, Inc.In Stock: 99211_MCX-50-2-15/111_NE Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the TE Connectivity AMP 1060875-2 are identified based on strict electrical and mechanical parameter alignment. The following criteria determine substitution eligibility:

Primary Matching Parameters:

• Connector Style: MCX
• Connector Type: Plug, Male Pin
• Impedance: 50 Ohms
• Contact Termination: Crimp
• Shield Termination: Crimp
• Mounting Type: Free Hanging (In-Line)
• Fastening Type: Snap-On
• Frequency - Max: 6 GHz
• Number of Ports: 1

Secondary Compatibility Parameters:

• Voltage Rating: 335 V or higher
• Mating Cycles: 500 or greater
• Operating Temperature Range: Must encompass or exceed -65°C to 165°C
• Moisture Sensitivity Level: 1 (Unlimited)

All identified substitute parts meet these core electrical and mechanical requirements, ensuring functional interchangeability within the specified application envelope.

Parameter Comparison

Engineering Selection Recommendations

Molex 0733660300 is an active product substitute with full electrical and mechanical compatibility to the TE Connectivity AMP 1060875-2. This component maintains identical impedance, frequency rating, mating cycles, and voltage specifications. The operating temperature range of -55°C to 155°C is narrower than the original part but remains suitable for standard industrial and commercial RF applications. The Molex part carries RoHS3 compliance and is currently in active production with confirmed inventory availability.

Huber+Suhner 11_MCX-50-2-15/111_NE is an active product substitute that meets all primary electrical and mechanical parameters. This component shares the same MCX connector style, 50-ohm impedance, 6 GHz frequency rating, and crimp termination specifications. The operating temperature range matches the Molex alternative at -55°C to 155°C. The voltage rating of 170 V is lower than the original specification of 335 V; this part is suitable for applications where the lower voltage rating does not present a constraint. The Huber+Suhner part is currently in active production with confirmed inventory availability.

Both substitute parts are classified as active products, ensuring long-term availability and supply chain continuity compared to the obsolete original component.

Frequently Asked Questions (FAQ)

Q: Can the Molex 0733660300 directly replace the TE Connectivity AMP 1060875-2 in all applications?

A: The Molex 0733660300 provides direct functional replacement for the TE Connectivity AMP 1060875-2 in applications operating within the temperature range of -55°C to 155°C and voltage requirements of 335 V or lower. Both components share identical MCX connector geometry, 50-ohm impedance, crimp termination, and 6 GHz frequency rating. The narrower operating temperature range of the Molex part must be evaluated against specific application requirements.

Q: What is the key difference between the Molex and Huber+Suhner substitutes?

A: The primary difference is the voltage rating. The Molex 0733660300 maintains the original 335 V rating, while the Huber+Suhner 11_MCX-50-2-15/111_NE is rated for 170 V. Both parts are electrically and mechanically compatible for MCX 50-ohm RF applications. Selection depends on the voltage requirements of the specific application.

Q: Are there cable group compatibility considerations?

A: The TE Connectivity AMP 1060875-2 is specified for RD-316 cable group. The Molex 0733660300 supports RG-174, 188, and 316 cable groups, providing broader compatibility. The Huber+Suhner 11_MCX-50-2-15/111_NE is specified for RD-316 cable group, matching the original part. Cable group selection must align with the specific coaxial cable used in the application.

Q: What is the significance of the operating temperature range difference?

A: The TE Connectivity AMP 1060875-2 operates from -65°C to 165°C, while both substitute parts operate from -55°C to 155°C. Applications requiring operation below -55°C or above 155°C cannot use the substitute parts. Applications within the -55°C to 155°C range are fully compatible with both substitutes.

Q: Are all three parts RoHS compliant?

A: The TE Connectivity AMP 1060875-2 is RoHS Compliant. The Molex 0733660300 is RoHS3 Compliant. The Huber+Suhner 11_MCX-50-2-15/111_NE compliance status is not specified in the provided data. Both active substitute parts meet current RoHS requirements for new designs.

Q: What is the insertion loss specification for the substitute parts?

A: The TE Connectivity AMP 1060875-2 specifies 0.1 dB insertion loss. Insertion loss values are not provided for the Molex 0733660300 or Huber+Suhner 11_MCX-50-2-15/111_NE in the available data. Applications with specific insertion loss requirements should obtain this specification directly from the manufacturers.

Q: Are the substitute parts available in the same packaging as the original?

A: The TE Connectivity AMP 1060875-2 packaging is not specified. The Molex 0733660300 is supplied in bulk packaging. The Huber+Suhner 11_MCX-50-2-15/111_NE is supplied in bulk packaging. Both substitute parts are available in active production with confirmed inventory.
