Equivalent & Substitute Parts for 0CNL150.V

Part Overview

The 0CNL150.V is a 150A fuse strip manufactured by Littelfuse Inc. under the POWR-GARD® CNL series. This bolt-mount fuse is rated for 32 VAC/32 VDC operation with fast-blow response characteristics and is designed for lift truck applications. The part is currently active in production with full RoHS3 compliance and UR approval agency certification. Alternative equivalent parts may be required due to supply availability, regional sourcing preferences, or specific application voltage requirements that exceed the primary part's rating.

Substiute Parts

0CNL150.V

Littelfuse Inc.In Stock: 9980CNL150.V Datasheet

Current PartRFQ

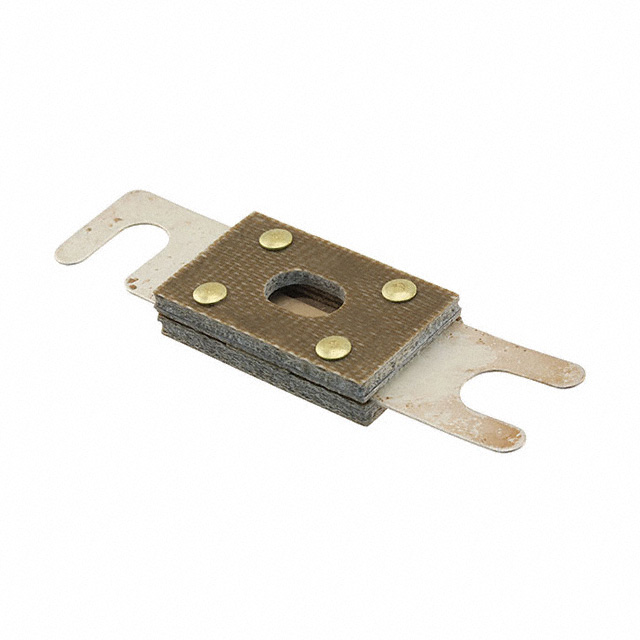

ANL-150

Eaton - Bussmann Electrical DivisionIn Stock: 902ANL-150 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the 0CNL150.V is based on the following critical parameters that must remain constant or be compatible:

• Current Rating: 150A (exact match required)
• Fuse Type: Fuse Strip (exact match required)
• Mounting Type: Bolt Mount (exact match required)
• Response Time: Fast Blow (exact match required)
• Voltage Rating: Must meet or exceed the application voltage requirement

The ANL-150 manufactured by Eaton - Bussmann Electrical Division qualifies as an equivalent substitute because it maintains the same current rating (150A), fuse strip configuration, bolt-mount design, and fast-blow response. The ANL-150 provides a higher DC voltage rating (80 VDC versus 32 VDC), making it suitable for applications requiring greater voltage headroom while maintaining identical current protection characteristics.

Parameter Comparison

Engineering Selection Recommendations

Both the 0CNL150.V and ANL-150 are active production parts with equivalent RoHS3 compliance and UR approval certification. Selection between these parts should be based on application voltage requirements and physical form factor compatibility:

• Use 0CNL150.V for applications operating at or below 32 VDC with cylindrical form factor requirements
• Use ANL-150 for applications requiring DC voltage operation up to 80 VDC or where rectangular blade terminal configuration is acceptable
• Both parts provide identical 150A current protection with fast-blow response suitable for lift truck applications
• The ANL-150 offers marginally higher breaking capacity (2.7kA versus 2.5kA), providing additional fault current handling capability

Frequently Asked Questions (FAQ)

Q: Can the ANL-150 be used as a direct replacement for the 0CNL150.V?

A: The ANL-150 is electrically equivalent for 150A current protection and fast-blow response. However, physical form factor differences exist: the 0CNL150.V uses a cylindrical blade terminal configuration while the ANL-150 uses a rectangular blade configuration. Mechanical fit in the mounting location must be verified before substitution.

Q: What is the primary difference between these two fuse strips?

A: The primary difference is voltage rating. The 0CNL150.V is rated for 32 VDC maximum, while the ANL-150 is rated for 80 VDC. Both maintain identical 150A current protection. The ANL-150 also provides slightly higher breaking capacity (2.7kA versus 2.5kA).

Q: Are both parts suitable for lift truck applications?

A: Yes, both the 0CNL150.V and ANL-150 are specified for lift truck applications and carry identical UR approval certification.

Q: What compliance certifications apply to both parts?

A: Both parts are RoHS3 compliant, REACH unaffected, and carry UR approval agency certification. Both are classified under ECCN EAR99 and HTSUS 8536.10.0040.

Q: Does package size affect electrical performance?

A: No. The difference between cylindrical and rectangular blade terminal configurations is purely mechanical. Electrical performance, current rating, and response time remain identical. Physical mounting space and terminal compatibility must be evaluated for your specific application.
