Molex 0934451202 Equivalent & Substitute Parts

Part Overview

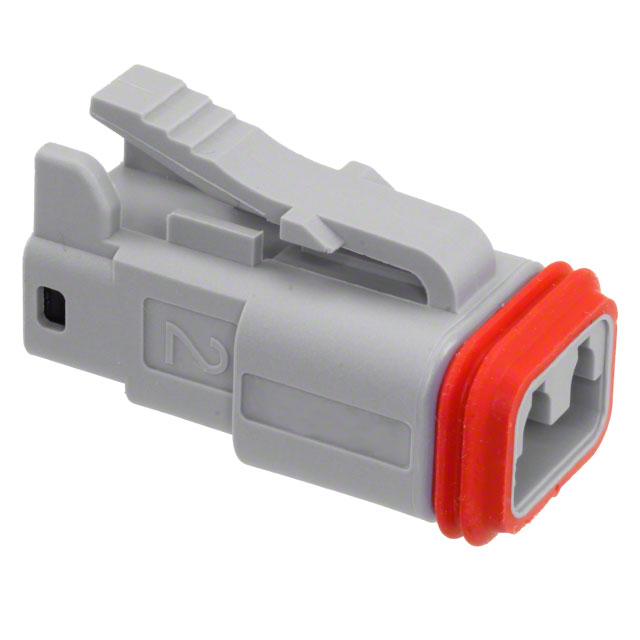

The Molex 0934451202 is a 2-position rectangular connector housing plug in gray, designed for free-hanging in-line applications with crimp termination and latch lock fastening. This connector is classified as obsolete, making equivalent and substitute parts necessary for ongoing system maintenance, repairs, and new designs requiring compatible alternatives.

The part belongs to the ML-XT 93445 series and is RoHS3 compliant with IP68 sealing capability. As an obsolete component, active production alternatives from other manufacturers provide direct functional equivalence while maintaining electrical and mechanical compatibility.

Key Parameters

Parameter	Value
Connector Type	Plug
Contact Type	Female Socket
Number of Positions	2
Number of Rows	1
Mounting Type	Free Hanging (In-Line)
Contact Termination	Crimp
Fastening Type	Latch Lock
Color	Gray
Features	IP68
RoHS Status	ROHS3 Compliant
Moisture Sensitivity Level	1 (Unlimited)
Product Status	Obsolete

Substitute Part Grouping Explanation

Substitution for the Molex 0934451202 is determined by strict equivalence across the following critical parameters:

Connector type (Plug)
Contact type (Female Socket)
Number of positions (2)
Number of rows (1)
Mounting configuration (Free Hanging In-Line)
Contact termination method (Crimp)
Fastening mechanism (Latch Lock)
Housing color (Gray)
Environmental sealing (IP68 minimum)
Regulatory compliance (RoHS3)

All substitute parts listed maintain these core specifications, ensuring direct mechanical and electrical compatibility. Substitute parts are sourced from active manufacturers, providing availability and ongoing support compared to the obsolete original part.

Parameter Comparison

Parameter	Molex 0934451202	Amphenol AT06-2S	TE Connectivity DT06-2S	TE Connectivity DT06-2S-E003	Amphenol AT06-2S-EC01
Manufacturer	Molex	Amphenol Sine Systems Corp	TE Connectivity Deutsch Connectors	TE Connectivity Deutsch Connectors	Amphenol Sine Systems Corp
Connector Type	Plug	Plug	Plug	Plug	Plug
Contact Type	Female Socket	Female Socket	Female Socket	Female Socket	Female Socket
Number of Positions	2	2	2	2	2
Number of Rows	1	1	1	1	1
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)
Contact Termination	Crimp	Crimp	Crimp	Crimp	Crimp
Fastening Type	Latch Lock	Latch Lock	Latch Lock	Latch Lock	Latch Lock
Color	Gray	Gray	Gray	Gray	Gray
Features	IP68	Sealed	IP68, IP6K9K	Cap (Cover), IP68, IP6K9K	Cap (Cover), Sealed
Operating Temperature	Not specified	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C
RoHS Status	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant
Product Status	Obsolete	Active	Active	Active	Active
Inventory Status	1144 Pcs New Original In Stock	54919 Pcs New Original In Stock	2008 Pcs New Original In Stock	1702 Pcs New Original In Stock	2272 Pcs New Original In Stock

Engineering Selection Recommendations

All four substitute parts are active production components from established manufacturers with full RoHS3 compliance and regulatory support. Selection among substitutes is based on specific application requirements and availability:

Amphenol AT06-2S: Direct functional equivalent with sealed design and highest inventory availability (54,919 units). Suitable for general applications requiring sealed connectors without integrated protective caps.

TE Connectivity DT06-2S: Active alternative with enhanced environmental protection (IP68 and IP6K9K ratings). Provides superior sealing performance for demanding applications. Moderate inventory availability (2,008 units).

TE Connectivity DT06-2S-E003: Enhanced variant of DT06-2S with integrated protective cap and identical environmental ratings. Recommended for applications requiring additional contact protection during storage or transport. Inventory: 1,702 units.

Amphenol AT06-2S-EC01: Manufacturer-recommended upgrade featuring integrated protective cap with sealed design. Combines Amphenol's sealed connector technology with protective cap functionality. Inventory: 2,272 units.

All substitutes maintain identical mechanical interfaces, electrical characteristics, and regulatory compliance with the obsolete Molex 0934451202.

Frequently Asked Questions (FAQ)

Q: Can the Amphenol AT06-2S directly replace the Molex 0934451202?

A: Yes. Both connectors share identical specifications for connector type, contact configuration, number of positions, mounting method, termination type, and fastening mechanism. The AT06-2S is an active production equivalent with sealed design and full RoHS3 compliance.

Q: What is the difference between DT06-2S and DT06-2S-E003?

A: The DT06-2S-E003 includes an integrated protective cap (cover) in addition to the base connector housing. Both variants maintain identical electrical and mechanical specifications, including IP68 and IP6K9K environmental ratings. The cap variant is selected when additional contact protection is required.

Q: Why does AT06-2S-EC01 carry a "manufacturer recommended" designation?

A: The AT06-2S-EC01 is designated as the manufacturer-recommended upgrade because it combines sealed connector design with integrated protective cap functionality, providing enhanced protection compared to the base AT06-2S variant while maintaining full compatibility.

Q: Are all substitute parts RoHS3 compliant?

A: Yes. All four substitute parts are RoHS3 compliant, meeting current regulatory requirements for hazardous substance restrictions.

Q: What is the operating temperature range for substitute parts?

A: All substitute parts operate across -55°C to 125°C, providing thermal performance suitable for industrial and automotive applications.

Q: Do substitute parts require different contact specifications?

A: No. All substitute parts accept the same crimp-terminated female socket contacts as the original Molex 0934451202. Contact specifications remain unchanged across all equivalents.

Q: Which substitute offers the best environmental sealing?

A: The TE Connectivity DT06-2S and DT06-2S-E003 provide the highest environmental protection with dual ratings (IP68 and IP6K9K). The DT06-2S-E003 adds integrated protective cap functionality for additional contact protection.
