Molex 0470801005 SATA Plug Connector - Equivalent & Substitute Parts

Part Overview

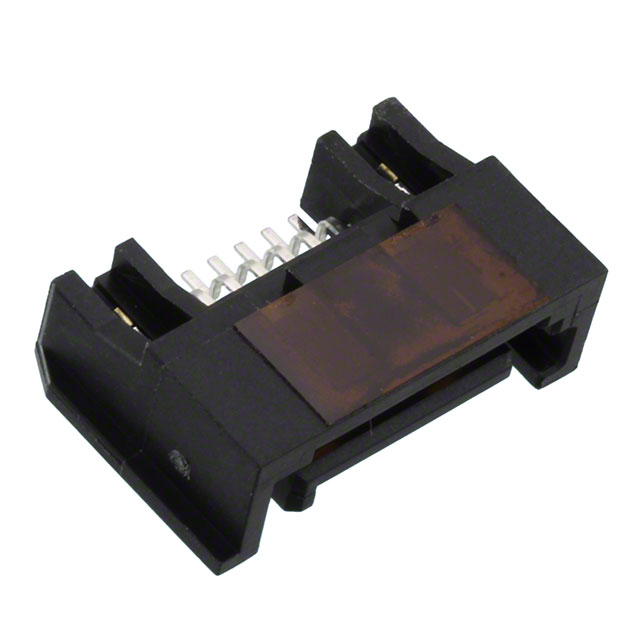

The Molex 0470801005 is a 7-position SATA plug connector with shrouded design, configured for surface mount right-angle installation with solder termination. This connector is classified as obsolete, making identification of equivalent substitute parts essential for ongoing production and maintenance applications. The part features gold-plated contacts and board guide support, designed for reliable SATA power distribution in compact form factors.

Substiute Parts

0470801005

MolexIn Stock: 11590470801005 Datasheet

Current PartRFQ

0470804005

MolexIn Stock: 8160470804005 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the Molex 0470801005 are identified based on strict electrical and mechanical parameter alignment. The primary substitution criterion is functional equivalence across the following parameters:

• Connector Type: SATA (7-position standard)
• Connector Style: Plug, Shrouded configuration
• Mounting Type: Surface Mount, Right Angle orientation
• Termination: Solder attachment method
• Contact Finish: Gold plating specification
• Features: Board Guide support

The substitute part Molex 0470804005 maintains identical electrical and mechanical specifications while differing in product status and packaging configuration. This substitution is valid for applications requiring direct form, fit, and function compatibility.

Parameter Comparison

Engineering Selection Recommendations

The Molex 0470804005 serves as the direct substitute for the obsolete 0470801005. Both parts maintain identical form, fit, and function across all critical electrical and mechanical parameters. The 0470804005 is currently in active production status, ensuring long-term availability and supply chain continuity.

Key differentiation factors include RoHS compliance status and packaging format. The 0470804005 achieves ROHS3 compliance, meeting current environmental and regulatory requirements for new designs and manufacturing processes. Packaging is supplied in Tape & Reel format, standard for automated assembly operations.

Selection of the 0470804005 is appropriate for applications requiring compliance with modern regulatory standards while maintaining full compatibility with existing mechanical and electrical interfaces.

Frequently Asked Questions (FAQ)

Q: Are the 0470801005 and 0470804005 mechanically interchangeable?

A: Yes. Both parts share identical connector style (plug, shrouded), mounting type (surface mount, right angle), and position count (7-position SATA). Physical dimensions and PCB footprints are equivalent.

Q: What is the primary difference between these two parts?

A: The 0470804005 is the active production equivalent of the obsolete 0470801005. The substitute part includes ROHS3 compliance certification and is supplied in Tape & Reel packaging for automated assembly, whereas the original part is RoHS non-compliant and supplied in bulk packaging.

Q: Can the 0470804005 be used in applications originally designed for the 0470801005?

A: Yes. The electrical and mechanical specifications are identical. The 0470804005 is a direct functional replacement suitable for new production, repair, and retrofit applications.

Q: Does packaging format affect electrical performance?

A: No. Tape & Reel packaging is a supply and handling format only. It does not alter the electrical or mechanical characteristics of the connector itself.

Q: Are there any compliance considerations when switching from 0470801005 to 0470804005?

A: The 0470804005 provides improved compliance status with ROHS3 certification. This is beneficial for applications subject to environmental regulations and modern manufacturing standards.
