Littelfuse 0362002.H 2A 250VAC 8AG Glass Cartridge Fuse Equivalent & Substitute Parts

Part Overview

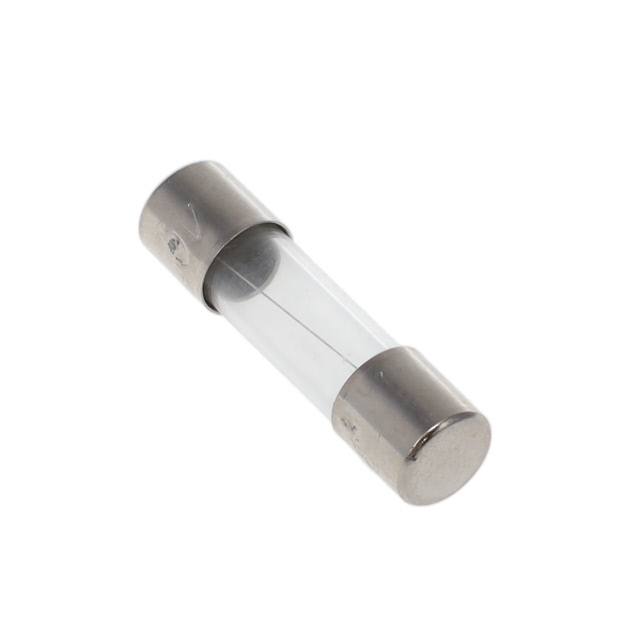

The Littelfuse 0362002.H is a 2 A 250 V AC/DC fast-blow glass cartridge fuse in the 8AG form factor (1/4" x 1"). This fuse is designed for circuits requiring fast response protection and operates within the 362 series. The part is currently active in production and maintains ROHS3 compliance. Equivalent and substitute parts are identified to support procurement flexibility, inventory management, and supply chain continuity for applications requiring this specific electrical and mechanical configuration.

Substiute Parts

0362002.H

Littelfuse Inc.In Stock: 7770362002.H Datasheet

Current PartRFQ

BK/AGX-2

Eaton - Electronics DivisionIn Stock: 1788BK/AGX-2 Datasheet

DirectRFQ

AGX-2

Eaton - Electronics DivisionIn Stock: 892AGX-2 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the Littelfuse 0362002.H are identified based on strict electrical and mechanical parameter matching. The primary substitution criteria are:

• Current Rating: 2 A (exact match required)
• Voltage Rating: 250 V AC (exact match required)
• Fuse Type: Cartridge, Glass (exact match required)
• Response Time: Fast Blow (exact match required)
• Package / Case: 8AG, 1/4" x 1" (exact match required)
• Mounting Type: Requires Holder (exact match required)

Two substitute parts meet these criteria: the Eaton BK/AGX-2 (direct manufacturer equivalent) and the Eaton AGX-2 (parametric equivalent). Both parts satisfy all core electrical and mechanical requirements for direct substitution in applications designed for the Littelfuse 0362002.H.

Parameter Comparison

Engineering Selection Recommendations

All three parts are active products with current manufacturing status. Selection between the Littelfuse 0362002.H and its Eaton substitutes depends on specific application requirements:

The Littelfuse 0362002.H maintains ROHS3 compliance, making it suitable for applications subject to RoHS regulations. Both Eaton alternatives (BK/AGX-2 and AGX-2) are RoHS non-compliant and should be selected only for applications where RoHS compliance is not required.

The Eaton AGX-2 matches the exact physical dimensions (0.250" Dia x 1.000" L) of the Littelfuse part and carries CSA, cURus, and UL certifications. The Eaton BK/AGX-2 has a slightly longer length (1.042" L) and carries cULus certification. Both Eaton parts provide 100A breaking capacity at rated voltage, whereas the Littelfuse specification does not provide this value.

Frequently Asked Questions (FAQ)

Q: Can the Eaton BK/AGX-2 be used as a direct replacement for the Littelfuse 0362002.H?

A: The Eaton BK/AGX-2 meets all core electrical parameters (2 A, 250 V AC, fast-blow, cartridge glass, 8AG package). However, its length is 1.042" compared to the Littelfuse 1.000" dimension. Verify that the additional 0.042" length does not create mechanical interference in the fuse holder or circuit board layout before substitution.

Q: What is the difference between the Eaton BK/AGX-2 and AGX-2?

A: Both are Eaton AGX series fast-blow 2 A 250 V fuses in 8AG packaging. The AGX-2 matches the exact physical dimensions of the Littelfuse part (1.000" L) and carries CSA, cURus, and UL certifications. The BK/AGX-2 is 0.042" longer and carries cULus certification. Select based on dimensional constraints and required certifications for your application.

Q: Are there RoHS compliance differences between these parts?

A: Yes. The Littelfuse 0362002.H is ROHS3 compliant. Both Eaton substitutes (BK/AGX-2 and AGX-2) are RoHS non-compliant. Applications requiring RoHS compliance must use the Littelfuse part.

Q: Do all three parts require a fuse holder?

A: Yes. All three parts are cartridge-type fuses that require a dedicated 8AG fuse holder for installation. They cannot be used in applications designed for other fuse form factors.

Q: What certifications apply to each part?

A: The Littelfuse 0362002.H carries CSA and UL certifications. The Eaton BK/AGX-2 carries cULus certification. The Eaton AGX-2 carries CSA, cURus, and UL certifications. Verify that the required certifications for your application are present before selecting a substitute.
