Molex 0022011104 Rectangular Connector Housing - Equivalent & Substitute Parts

Part Overview

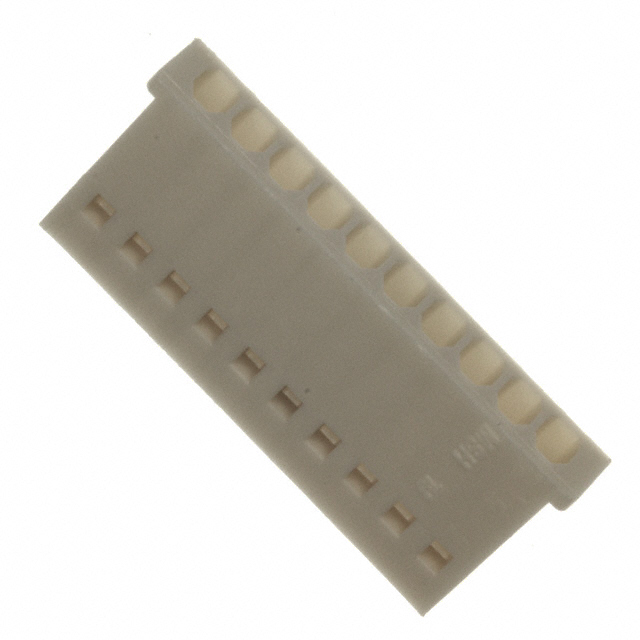

The Molex 0022011104 is a 10-position receptacle housing for rectangular connectors with a 0.098" (2.50mm) pitch, designed for free-hanging in-line applications using crimp termination. This part is classified as obsolete, making identification of equivalent and substitute components essential for ongoing system support and procurement planning. Active alternatives are available from both Molex and TE Connectivity that maintain functional compatibility within specified electrical and mechanical parameters.

Key Parameters

Parameter	Value
Connector Type	Receptacle
Contact Type	Female Socket
Number of Positions	10
Pitch	0.098" (2.50mm)
Number of Rows	1
Mounting Type	Free Hanging (In-Line)
Contact Termination	Crimp
Fastening Type	Locking Ramp
RoHS Status	ROHS3 Compliant
Moisture Sensitivity Level	1 (Unlimited)

Substitute Part Grouping Explanation

Substitution eligibility for the Molex 0022011104 is determined by the following critical parameters:

Connector Type & Contact Configuration: Must be receptacle with female socket contacts
Position Count: Must accommodate 10 positions
Pitch Specification: Primary substitutes maintain 0.098" (2.50mm) pitch; alternative pitch specifications represent cross-series compatibility options
Mounting & Termination: Must support free-hanging in-line mounting with crimp termination
Fastening Mechanism: Must utilize locking ramp fastening
Compliance: Must maintain ROHS3 compliance and MSL 1 rating

Two substitute parts are identified:

Molex 0050375103 (Parametric Equivalent): Maintains identical pitch, position count, and all functional parameters within the Mini-SPOX 5264 series

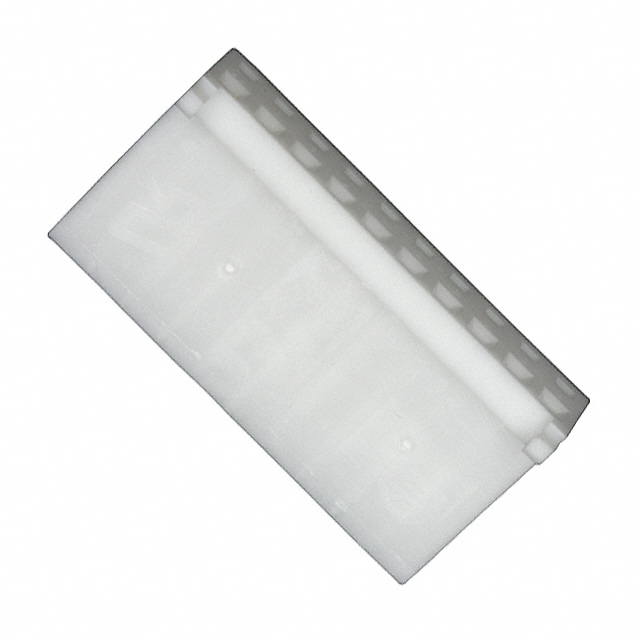

TE Connectivity 1-1375820-0 (Cross-Manufacturer Alternative): Differs in pitch specification (0.100" / 2.54mm) but maintains all other functional parameters within the CST-100 II series

Parameter Comparison

Parameter	Molex 0022011104 (Main)	Molex 0050375103 (Substitute)	TE Connectivity 1-1375820-0 (Substitute)
Manufacturer	Molex	Molex	TE Connectivity AMP Connectors
Series	SPOX 5102	Mini-SPOX 5264	CST-100 II
Product Status	Obsolete	Active	Active
Connector Type	Receptacle	Receptacle	Receptacle
Contact Type	Female Socket	Female Socket	Female Socket
Number of Positions	10	10	10
Pitch	0.098" (2.50mm)	0.098" (2.50mm)	0.100" (2.54mm)
Number of Rows	1	1	1
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)
Contact Termination	Crimp	Crimp	Crimp
Fastening Type	Locking Ramp	Locking Ramp	Locking Ramp
RoHS Status	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant
Moisture Sensitivity Level	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)
Operating Temperature	Not specified	-55°C ~ 105°C	-55°C ~ 105°C
Insulation Material	Not specified	Polyamide (PA), Nylon	Polyamide (PA), Nylon

Engineering Selection Recommendations

Molex 0050375103 is the primary substitute for the obsolete Molex 0022011104. Both parts are manufactured by Molex, maintain identical pitch and position specifications, and are fully compatible within the same connector ecosystem. The 0050375103 is currently in active production status with substantial inventory availability (23,539 pcs), ensuring long-term procurement viability. Both parts maintain ROHS3 compliance and MSL 1 rating.

TE Connectivity 1-1375820-0 serves as a cross-manufacturer alternative when Molex parts are unavailable. This part differs in pitch specification (0.100" / 2.54mm versus 0.098" / 2.50mm), which requires verification of mechanical compatibility with existing mating connectors and PCB layouts. The TE Connectivity part is actively produced (10,793 pcs in stock) and maintains equivalent compliance certifications. Selection of this alternative requires confirmation that the pitch difference does not conflict with system design constraints.

Frequently Asked Questions (FAQ)

Q: Can the Molex 0050375103 directly replace the Molex 0022011104?

A: Yes. Both parts maintain identical pitch (0.098" / 2.50mm), position count (10), mounting type (free-hanging in-line), contact termination (crimp), and fastening mechanism (locking ramp). The 0050375103 is the parametric equivalent within the Molex product line.

Q: What is the primary difference between the Molex 0050375103 and TE Connectivity 1-1375820-0?

A: The pitch specification differs. The Molex 0050375103 maintains 0.098" (2.50mm) pitch, while the TE Connectivity 1-1375820-0 uses 0.100" (2.54mm) pitch. This difference affects mechanical compatibility with mating connectors and PCB footprints.

Q: Can the TE Connectivity 1-1375820-0 be used as a substitute?

A: The TE Connectivity 1-1375820-0 is functionally equivalent in terms of position count, mounting type, termination method, and fastening mechanism. However, the pitch difference requires verification that existing mating connectors and PCB layouts accommodate the 0.100" (2.54mm) specification.

Q: Are all substitute parts RoHS compliant?

A: Yes. The Molex 0022011104, Molex 0050375103, and TE Connectivity 1-1375820-0 are all ROHS3 compliant with MSL 1 (Unlimited) moisture sensitivity rating.

Q: What is the inventory status of substitute parts?

A: The Molex 0050375103 has 23,539 pcs in stock. The TE Connectivity 1-1375820-0 has 10,793 pcs in stock. Both are actively produced and available for procurement.
