Molex 0016020113 Equivalent & Substitute Parts

Part Overview

The Molex 0016020113 is a pin contact connector designed for rectangular connector applications. This component is classified as a crimp-style gold-plated pin contact rated for 32-36 AWG wire gauges. The part maintains Active product status and is fully compliant with RoHS3 and REACH regulations. Substitute parts are identified when equivalent electrical and mechanical parameters align with the original specification, enabling component interchangeability in applications where the primary part is unavailable or inventory constraints require alternative sourcing.

Substiute Parts

0016020113

MolexIn Stock: 10700016020113 Datasheet

Current PartRFQ

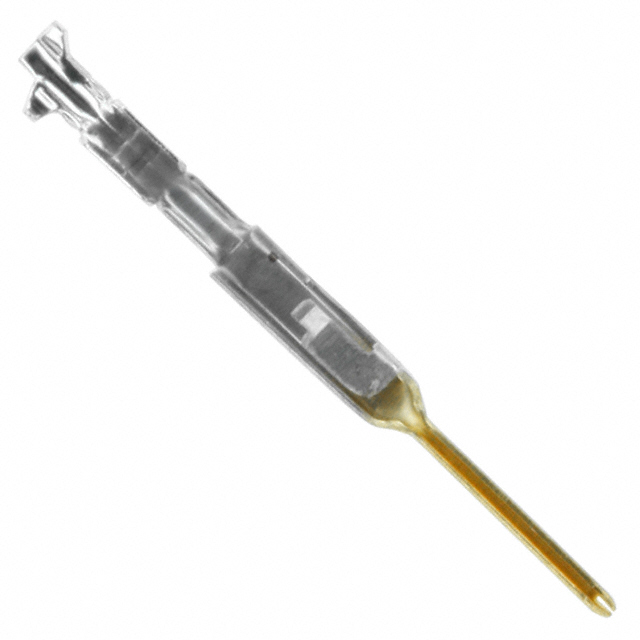

104506-7

TE Connectivity AMP ConnectorsIn Stock: 1230104506-7 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the Molex 0016020113 is determined by the following critical parameters:

• Contact Type: Pin configuration
• Termination Method: Crimp termination
• Contact Finish: Gold plating at 30.0µin (0.76µm) thickness
• Wire Gauge Compatibility: Acceptable range overlap with the original 32-36 AWG specification
• Moisture Sensitivity Level: MSL 1 (Unlimited) rating
• Regulatory Compliance: RoHS and REACH status alignment

The identified substitute part TE Connectivity AMP Connectors 104506-7 shares the same contact type (pin), termination method (crimp), contact finish (gold at 30.0µin), and moisture sensitivity classification. Wire gauge specification differs (28-32 AWG versus 32-36 AWG), with overlap occurring in the 32 AWG range. Both parts maintain Active product status and equivalent regulatory compliance profiles.

Parameter Comparison

Engineering Selection Recommendations

Selection between the Molex 0016020113 and TE Connectivity 104506-7 is based on the following engineering criteria:

Molex 0016020113 is the primary specification when applications require wire gauges in the 34-36 AWG range, as this specification range is exclusive to the Molex part. Both parts maintain Active product status, ensuring continued manufacturing support and availability.

TE Connectivity 104506-7 is suitable for applications operating within the 28-32 AWG wire gauge range. This part is specified when the 32 AWG overlap point satisfies application requirements. RoHS3 compliance is confirmed for the Molex part; the TE Connectivity part indicates RoHS status as Not applicable, which may require evaluation against specific procurement requirements.

Both parts carry identical contact finish specifications, termination methods, and moisture sensitivity ratings, supporting direct substitution within the overlapping wire gauge specification (32 AWG).

Frequently Asked Questions (FAQ)

Q: Can TE Connectivity 104506-7 replace Molex 0016020113 in all applications?

A: Substitution is valid only when the application wire gauge requirement falls within the 32 AWG specification, which is the overlapping range between both parts. Applications requiring 34-36 AWG wire gauges must use the Molex 0016020113.

Q: Are the contact finish specifications identical between these parts?

A: Yes. Both parts feature gold-plated contacts with 30.0µin (0.76µm) thickness, ensuring equivalent electrical and corrosion resistance properties.

Q: What is the significance of the Moisture Sensitivity Level rating?

A: Both parts carry MSL 1 (Unlimited) classification, indicating no moisture sensitivity constraints during storage, handling, or assembly processes.

Q: How do the RoHS compliance statuses differ?

A: The Molex 0016020113 is explicitly ROHS3 Compliant. The TE Connectivity 104506-7 indicates RoHS status as Not applicable. Procurement specifications should confirm whether this difference affects component selection for your application.

Q: Are both parts actively manufactured?

A: Yes. Both the Molex 0016020113 and TE Connectivity 104506-7 maintain Active product status, confirming ongoing manufacturing and availability.
